Dinosaur skeleton generator Pro

A T. rex, triceratops or brachiosaurus skeleton that holds any pose you give it.

Open Dinosaur skeleton in the app Pro generator: explore its settings in the app; cut files come with Pro, from $5 a month (coming soon).

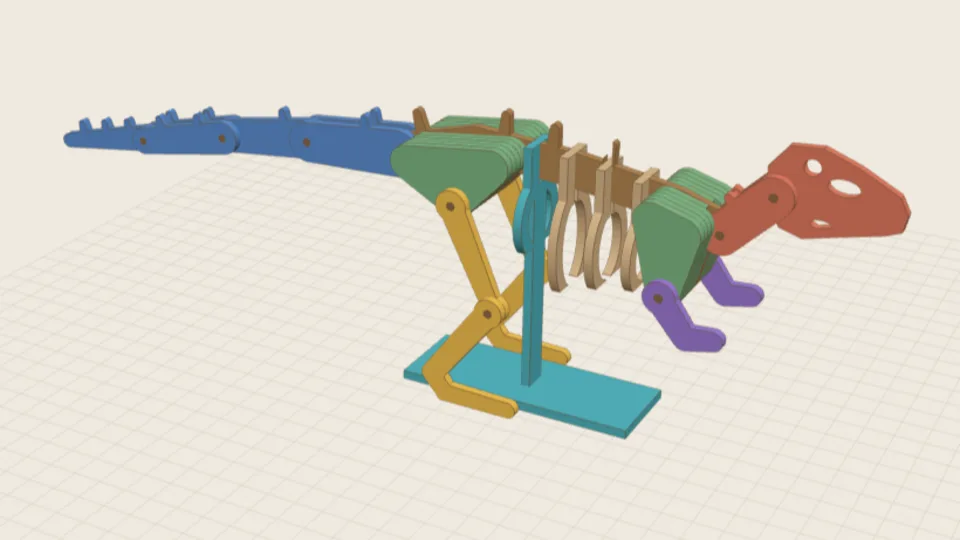

A laser-cut T. rex skeleton on a stand: ribs slotted onto the spine, a long tail and the legs on pins

In short: Poseable dinosaur skeleton (T. rex, triceratops or brachiosaurus): ribs slotted onto the spine, neck, head, tail and legs on pins that hold any pose. Checked through the whole range of motion.

The classic wooden dinosaur kit, but poseable. Pick a T. rex, a triceratops or a brachiosaurus and a length, and you get a complete skeleton: a spine with ribs that slot onto it from below, a pelvis and shoulder blades glued up from plates, and a neck, head, tail and legs that turn on dowel pins.

The pins are pressed into one side of each joint and turn stiffly in the other, so the skeleton stays the way you leave it: head down sniffing the ground, tail swishing, mid-stride. Every joint is checked through its whole range of motion, so no bone hits another however you pose it. The 3D preview has a slider per joint, so you can try poses before you cut.

An optional stand (one rib that reaches down to a base between the feet) keeps the two-legged T. rex upright. The skull has its eye socket and skull windows cut out, with the mouth and teeth engraved.

You need: plywood, dowel for the pins, and glue. Cut the fit test first to get the pin holes right.

Settings

All of these can be changed in the app, and the 3D preview updates as you type. The name under each setting is its key in a share link, e.g. https://laserpuzzle.app/app/#/dino-skeleton?species=…; a link only needs the settings that differ from the defaults.

Skeleton

SettingDefaultWhat it does
Species
species		t-rexOptions: t-rex, triceratops, brachiosaurus.
Length
size		320 mmNose to tail tip; everything else scales with it. From 180 to 1200 mm.
Ribs
ribs		0Rib count; 0 = from the size. From 0 to 16.
Stand
stand		onA rib that reaches down to a base plate between the feet, so it can't tip over.
Engraved details
details		onVertebrae, mouth and teeth.

Pins

SettingDefaultWhat it does
Pin diameter
pin_diameter		3 mmMeasured diameter of the dowel or rod used for every pin. From 2 to 8 mm.
Press-fit hole offset
press_fit		-0.1 mmHole = pin + this, where a pin is fixed. Find it with the fit-test hole strip. From -1 to 1 mm.
Pivot hole offset
pivot_fit		0 mmHole = pin + this, where a bone turns. Small = stiff joints that hold a pose. From -0.5 to 1 mm.

Plus the material and machine settings every generator has: material thickness, kerf, slot clearance, sheet width, sheet height, part spacing, engrave part labels, cut line colour, engrave line colour.
